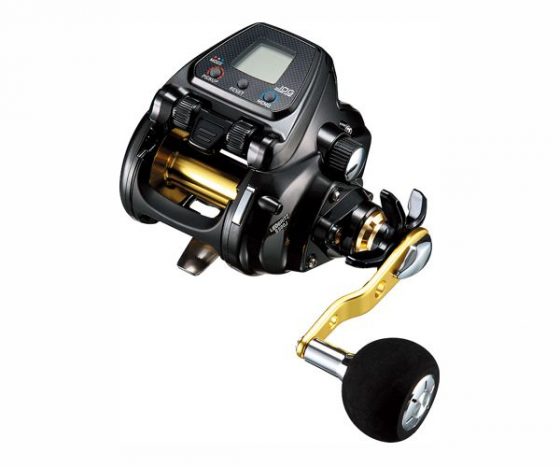

LEOBRITZ S500J
Handle knob L Replaceable
DESCRIPTION
A high-performance electric motor that combines the power of raging waves
A 500-size electric motor that can target all kinds of targets, from powerful targets such as large blue-runners and squid to medium-deep areas such as light alfonsinos and Mutsu. handheld. JOG power lever that can be operated comfortably with both poles. Equipped with a BRITZ motor with a magmite structure that produces high power at its heart, it demonstrates raging waves of power. Adopt ATD that continues to work smoothly for drag. In addition, it hits a school of fish directly with an automatic thread feed mechanism that drops at high speed and synchronized level wind.
Technologies
DAIWA TECHNOLOGY
■JOG power lever
The new Jog Power Lever system is designed for standup fishing techniques. With the standing fight concept in mind, the Jog Lever will allow an immediate response to wind the line. When standing with the rod/reel outfit in your right hand the lever can be controlled with your left thumb. Alternatively when using your left hand to hold the outfit, pinching the lever with your right hand will allow you to control the machine easily. This easy to use function will allow you to continuously lead the fight against your target.
. (Photo is Seaborg 500J)
■ATD (automatic drag system)
ATD gives you the power and poise to take control of whatever crosses your angling path. ATD is a combination of seven large carbon washers and improved drag grease. The new grease exhibits a low viscosity at rest, yet becomes more viscous immediately after drag startup. This reduces initial drag start-up inertia. When combined with the structural changes to the ATD Drag washers, results in a smoother stronger drag from the initial hook up, allowing you to concentrate on the fight. This tough drag function will adjust according to the pulling of fish.
■BRITZ motor
torque, high-power brush motor that instantly transmits power to the gears like an electric shock, allowing anglers to freely wind up at will. The “magmite structure” that maximizes the space inside the reel to increase motor output further supports powerful driving.
■ FF structure
By placing the motor that corresponds to the engine in front of the spool, it is possible to design the entire reel into a low-profile, compact and easy-to-hold shape.
■ Fall Brake Dial
A brake system that allows you to instantly set the falling speed of the fall brake dial mechanism by dialing. In addition to preventing backlash, you can get advantages such as improving the attachment of bait when dropping and capturing the touch in the middle layer in squid fishing by controlling the stable drop of the tackle.
■Ultra Spool Free & Synchro Level Wind
The Ultra Spool Free, in which the spool rotates smoothly even with a light load, is effective in squid fishing where the falling speed of the gimmick determines the game, and fishing using light gimmicks. However, if the position of the thread and the level wind is misaligned when the tackle is dropped, the load will naturally slow down and the thread will be damaged. All Daiwa’s electric models are equipped with a synchronized level wind function that moves the level wind left and right according to the line release. Since no extra load is applied, it realizes smooth and high-speed drop of the device. (Photo is Seaborg 300MJ)
Other functions and specifications
| Function | Feature |
|---|---|
| ■ One-push ON clutch | You can easily put the clutch in the hand holding the rod. A mechanism that can quickly remove diligent tuna in combination with a one-hand clutch. |
| ■ Aluminum die-cast body | Body material with high rigidity and little deformation. Firmly receives the drive section including the MAGMAX motor and supports powerful fights. |
| ■ Belt drive | Quietness, lightweight, and high efficiency are achieved by transmitting power from the motor to the spool via a belt instead of a gear. |
| ■ Infinite | Eliminates rattling of the handle when winding by hand, realizing a firm and smooth winding feeling like a hand-wound reel. You can more comfortably operate when inviting or taking in a little. |
| ■ Ultra spool free | High-speed drop performance realized by separating the gear of the spool and the motor part to eliminate resistance to the rotation of the spool. Especially effective in squid fishing and Fukase fishing. |
| ■ Constant speed winding mode | A function that reduces looseness by always hoisting with the same tension. |
| ■Electric slow winding | A function that allows “slow winding”, which is said to be an effective technique for various target fish. For the electric winding speed adjustment, set the speed from low speed to slow. |
| ■ Display correction function | A function that can be easily corrected during actual fishing when the counter display deviates from the thread color. |
| ■ Counter from top/bottom |
Since the water depth can be measured from both the top and the bottom, accurate fishing is possible in any situation and fishing. |
| ■ Short winding / shortstop switch | A short winding that winds at the set speed just by pressing the switch when removing tana or thread dander. Set to both by mode selection. |
| ■ Master Shakuri / Shakuri Switch | A convenient function that invites you to the electric reel. The width, waiting time, and range of the jerking pattern can be freely selected. |
| ■ Fukase mode | Dedicated system convenient for hook fishing, such as Atari Alarm, Hook Click, and Fishing Tana Memory. |
| ■ Komasetaimu & Komasetimer winding | You can set the time from when you put in a device to when you retrieve it, and you can make accurate returns. With the timer display function, you can accurately grasp the time to put the device in. |
| ■ Hoisting speed actual value display | Function to display the actual winding speed. Useful as a guideline for speed when winding. |
| ■ Selectable boat stop | A function that automatically stops winding when the set length is reached during electric winding. If you set it to a length that is convenient for taking in, you can double the return efficiency and help prevent entanglement, which is the main cause of rod damage. |
| ■ Slow boat stop | A function that prevents disassembly due to impact by stopping slowly when the electric hoisting stops at the ship’s side. |
| ■ Yarn feed mechanism | A function that assists the rotation of the spool that ejects the thread by rotating the motor gear in reverse when the device is dropped. In combination with Ultra Spool Free, it is effective for fishing where you want to drop the device as soon as possible. |
| ■ Washable | It can be washed with water using a neutral detergent (however, washing by submerging it in water and hot water is strictly prohibited). |
| ■Alarm ON/OFF | ON / OFF switching of alarm switch sound is possible. |
| ■ Memory backup function | A backup function that memorizes the contents set in the mode for the next fishing trip. |
■Spool-free adjustment dial to prevent falling off
Specs
*Bright is our shelf sensor bright (PE).
* Figures in parentheses in the table are approximate values when using Super Lithium.
* The amount of winding thread is a guideline and varies depending on the manufacturer, item, and tension.
<Precautions when inputting>
The magmite structure is designed to strengthen the motor output and improve the heat dissipation effect of the motor. As a result, please note the following points if you continue to wind for a longer time than usual, such as when inputting.
1: Please note that the frame tends to get hot when inputting the thread.
2: For safety, wrap the frame (motor part) with a wet towel, etc., and be careful of heat.
Accessories
- Threading pin
- Japanese seal
- Super power cord (black)
- Tool
* Rod clamp (sold separately) can be installed as an option.
Glossary
| Maximum hoisting force | Reference value based on power supply voltage 13V and shaft torque. (Power range for Mega Twin mechanism) * kg = Kgf cm (Specifications are written in simplified form.) |
|---|---|
| Normal hoisting speed | Average of 100m hoisting speed with 13V power supply and 1kg load. |
| JAFS standard hoisting force | Measured value at a power supply voltage of 13 V according to the Japan Fishing Goods Industry Association standard. Momentary maximum hoisting force at the outer diameter of the spool. (power range for mega twin mechanism) |
| JAFS standard hoisting speed | Measured value at a power supply voltage of 13 V according to the Japan Fishing Goods Industry Association standard. Hoisting speed at no load at the outer diameter of the spool. |
* “JAFS Standards” = Standards for fishing products established by the Japan Fishing Goods Industry Association.
Remark
Power supply
Daiwa’s electric reel is compatible with direct current (DC) 12V. It cannot be used with non-designated power sources, such as 100V AC for home use and 24V DC for ships. In addition, the voltage of the ship’s power supply is likely to be unstable due to the generator and wiring, and the protection circuit of the reel may be activated and the rotation may stop or become intermittent. In order to fully demonstrate the performance of the reel, please use Daiwa genuine electric reel battery.
